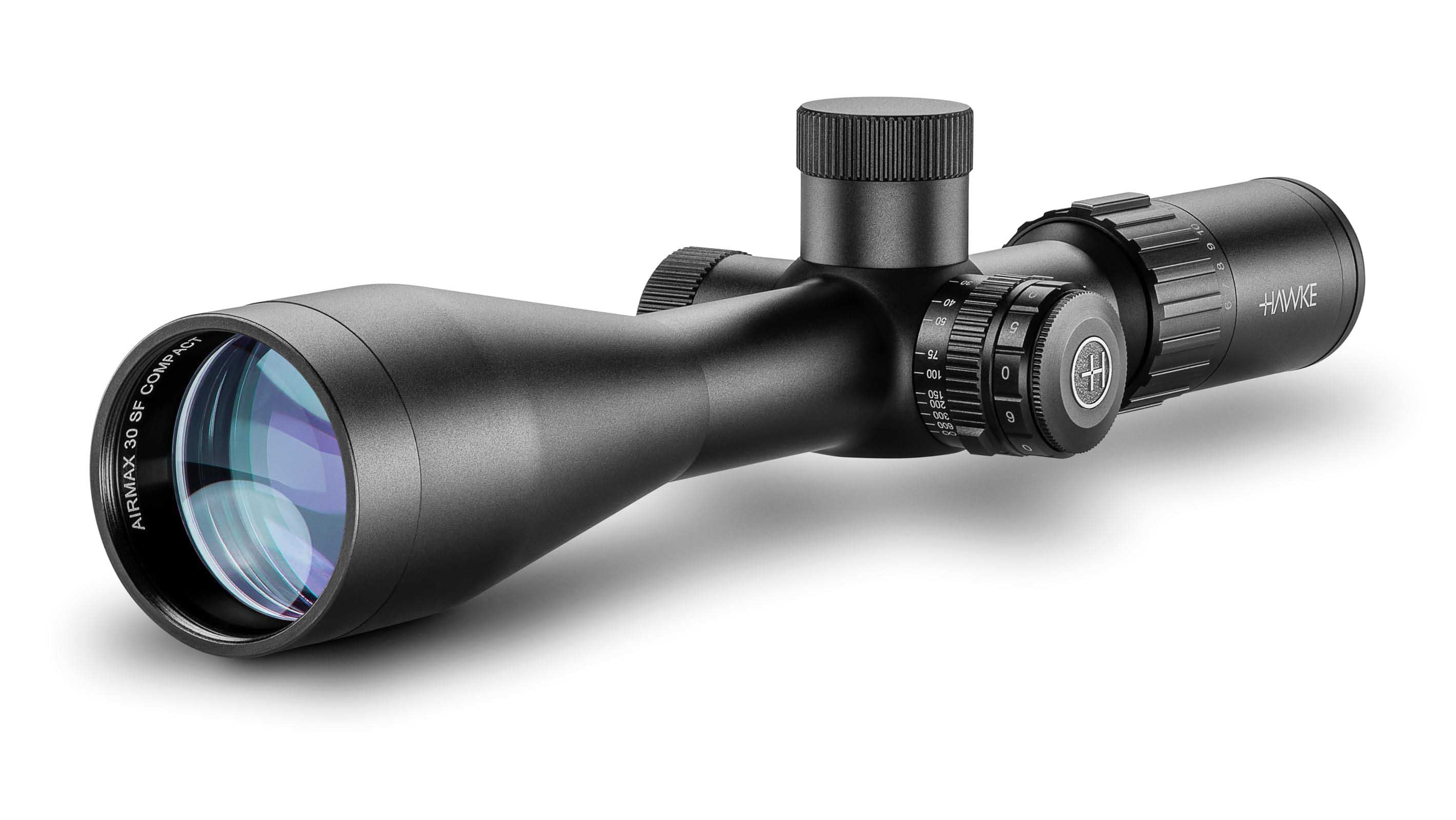

AIRMAX 30 SF COMPACT 6-24X50

Sale price£349.00

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

  • MORE RETICLE INFORMATION

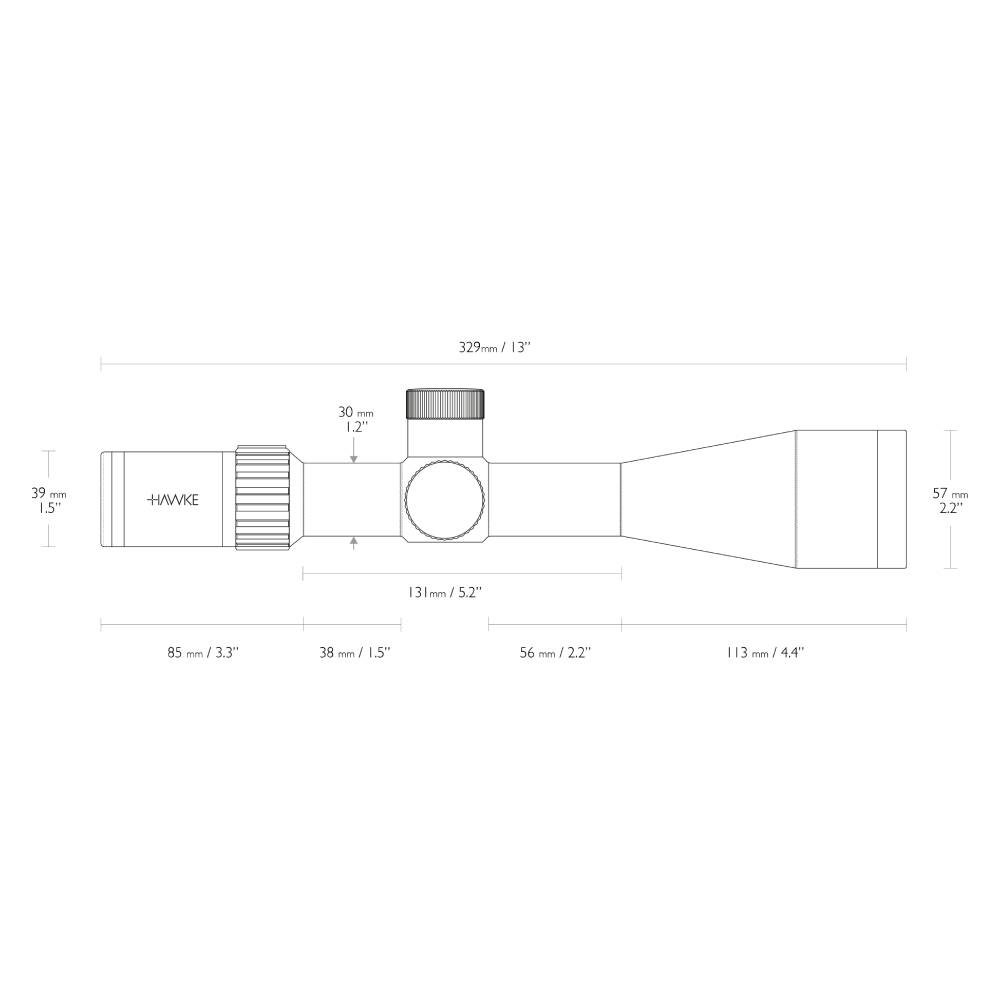

Line Drawing
Optical System
System H2
Scope Tube
30mm
Magnification
6 - 24x
Objective Lens
50mm
Reticle
AMX IR
Illumination
6 Levels with Off Positions In-between - Red
Parallax
Side Focus
Focal Plane
SFP (Second Focal Plane)
Lens Coating
Fully Multi-Coated - 16 Layers

Field of View
21.9 - 5.5ft @100yds
7.3 - 1.8m @100m
Field of View
4.2 - 1°
Eye Relief
3in
76mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.33 - 0.08″
8.3 - 2.1mm

Turret Type
Target
Turret Caps
YES
Click Value
1 10MRAD
Elevation Turret Clicks (max)
16 MRAD
Windage Turret Clicks (max)
16 MRAD

Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip

Length
13″
329mm
Weight
23.6oz
670g
